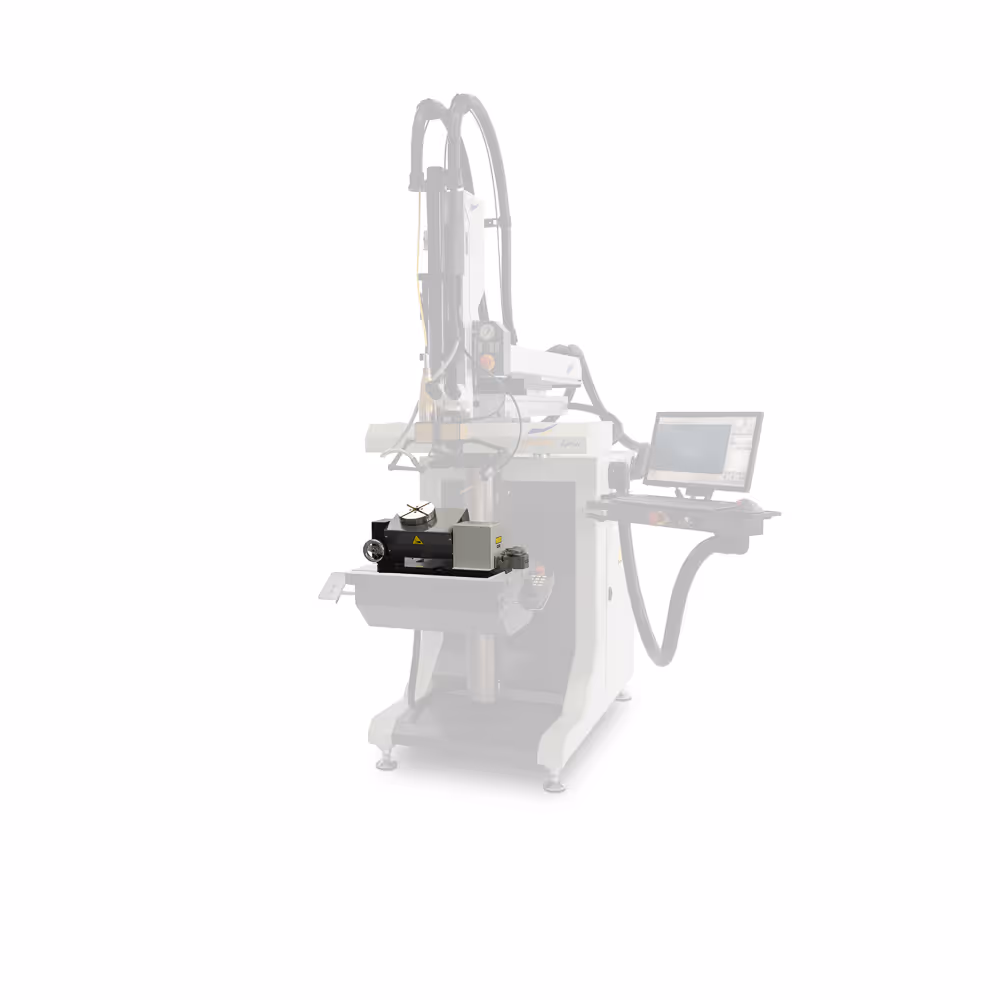

The plug-in swivel rotary table expands the ASKIAS adaptation with an additional CNC-controlled and a manual swivel axis, which is operated by means of a pluggable hand crank. The CNC-controlled rotary axis offers endless rotation, while the swivel axis has a swivel angle of 120 degrees forward and 20 degrees° has backwards. With a maximum payload of 10 kg, the rotary table is ideal for processing rotationally symmetrical components such as shafts.
Operation requires a control cabinet extension to 4-axis operation.
